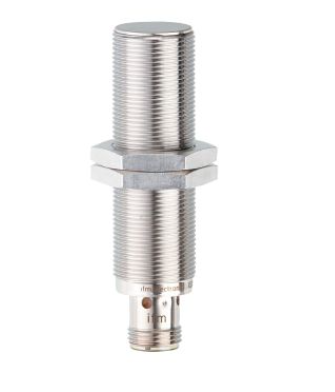

IGT247
Mã sản phẩm: IGT247
Nhà sản xuất: IFM
Xuất xứ:: Đức
Giá: Email
Liên hệ báo giá : Mr. Dũng - 0979.587.528 - Mr. Lâm
HỖ TRỢ KHÁCH HÀNG
- 83/8 Thoại Ngọc Hầu, Phường Hoà Thạnh, Quận Tân Phú, TP.HCM
- 0979.587.528
- info@vius.vn
| Product characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Sensing range [mm] | 5 | ||||||||||
| Housing | threaded type | ||||||||||
| Dimensions [mm] | M18 x 1 / L = 70 | ||||||||||
| Application | |||||||||||
| Special feature | Gold-plated contacts; Full-metal housing | ||||||||||
| Application | constant cleaning with aggressive cleaning agents; regular cleaning processes | ||||||||||
| Pressure rating [bar] | 100 | ||||||||||
| Note on pressure rating |
|
||||||||||
| Electrical data | |||||||||||
| Operating voltage [V] | 10...30 DC | ||||||||||
| Current consumption [mA] | < 20 | ||||||||||
| Protection class | III | ||||||||||
| Reverse polarity protection | yes | ||||||||||
| Outputs | |||||||||||
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
| Permanent current rating of switching output DC [mA] | 100 | ||||||||||
| Switching frequency DC [Hz] | 100 | ||||||||||
| Short-circuit protection | yes | ||||||||||
| Type of short-circuit protection | pulsed | ||||||||||
| Overload protection | yes | ||||||||||
| Detection zone | |||||||||||
| Sensing range [mm] | 5 | ||||||||||
| Operating distance [mm] | 0...4.05 | ||||||||||
| Accuracy / deviations | |||||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.7 / aluminium: 0.5 / copper: 0.2 | ||||||||||
| Hysteresis [% of Sr] | 1...20 | ||||||||||
| Operating conditions | |||||||||||
| Ambient temperature [°C] | 0...100 | ||||||||||
| Protection | IP 68; IP 69K | ||||||||||
| Tests / approvals | |||||||||||
| EMC |
|
||||||||||
| Impact resistance |
|
||||||||||
| MTTF [years] | 1258 | ||||||||||
| Embedded software included | yes | ||||||||||
| UL approval |
|
||||||||||
| Mechanical data | |||||||||||
| Weight [g] | 55 | ||||||||||
| Housing | threaded type | ||||||||||
| Mounting | flush mountable | ||||||||||
| Dimensions [mm] | M18 x 1 / L = 70 | ||||||||||
| Thread designation | M18 x 1 | ||||||||||
| Materials | housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L) | ||||||||||
| Tightening torque [Nm] | 50 | ||||||||||
| Full-metal housing | yes | ||||||||||
| Displays / operating elements | |||||||||||
| Display |
|
||||||||||
| Accessories | |||||||||||
| Items supplied |
|
||||||||||
| Remarks | |||||||||||
| Pack quantity | 1 pcs. | ||||||||||
| Electrical connection - plug | |||||||||||
| Connector: 1 x M12; Contacts: gold-plated | |||||||||||
