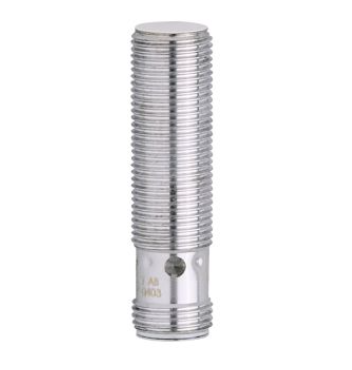

IFT203
Mã sản phẩm: IFT203
Nhà sản xuất: IFM
Xuất xứ:: Đức
Giá: Email
Liên hệ báo giá : Mr. Dũng - 0909.340.947
HỖ TRỢ KHÁCH HÀNG
- 83/8 Thoại Ngọc Hầu, Phường Hoà Thạnh, Quận Tân Phú, TP.HCM
- 0909.340.947
- info@vius.vn
| Product characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Sensing range [mm] | 4 | ||||||||||
| Housing | threaded type | ||||||||||
| Dimensions [mm] | M12 x 1 / L = 45 | ||||||||||
| Application | |||||||||||
| Special feature | Gold-plated contacts; Increased sensing range | ||||||||||
| Application | regular cleaning processes | ||||||||||
| Electrical data | |||||||||||
| Operating voltage [V] | 10...36 DC | ||||||||||
| Current consumption [mA] | 10; (24 V) | ||||||||||
| Protection class | II | ||||||||||
| Reverse polarity protection | yes | ||||||||||
| Outputs | |||||||||||
| Electrical design | PNP | ||||||||||
| Output function | normally open | ||||||||||
| Max. voltage drop switching output DC [V] | 2.5 | ||||||||||
| Permanent current rating of switching output DC [mA] | 100 | ||||||||||
| Switching frequency DC [Hz] | 800 | ||||||||||
| Short-circuit protection | yes | ||||||||||
| Type of short-circuit protection | pulsed | ||||||||||
| Overload protection | yes | ||||||||||
| Detection zone | |||||||||||
| Sensing range [mm] | 4 | ||||||||||
| Operating distance [mm] | 0...3.25 | ||||||||||
| Increased sensing range | yes | ||||||||||
| Accuracy / deviations | |||||||||||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||||||||||
| Hysteresis [% of Sr] | 1...20 | ||||||||||
| Operating conditions | |||||||||||
| Ambient temperature [°C] | 0...100 | ||||||||||
| Protection | IP 68; IP 69K; ("COP") | ||||||||||
| Tests / approvals | |||||||||||
| EMC |
|
||||||||||
| MTTF [years] | 1676 | ||||||||||
| UL approval |
|
||||||||||
| Mechanical data | |||||||||||
| Weight [g] | 27 | ||||||||||
| Housing | threaded type | ||||||||||
| Mounting | flush mountable | ||||||||||
| Dimensions [mm] | M12 x 1 / L = 45 | ||||||||||
| Thread designation | M12 x 1 | ||||||||||
| Materials | threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel | ||||||||||
| Displays / operating elements | |||||||||||
| Display |
|
||||||||||
| Accessories | |||||||||||
| Items supplied |
|
||||||||||
| Remarks | |||||||||||
| Pack quantity | 1 pcs. | ||||||||||
| Electrical connection - plug | |||||||||||
| Connection | Connector: 1 x M12; Contacts: gold-plated | ||||||||||
